ESEngine

Cross-platform 2D Game Engine

English | 中文

Documentation · API Reference · Download Editor · Examples

---

Overview

ESEngine is a cross-platform 2D game engine built from the ground up with modern web technologies. It provides a comprehensive toolset that enables developers to focus on creating games rather than building infrastructure.

Export your games to multiple platforms including web browsers, WeChat Mini Games, and other mini-game platforms from a single codebase.

Key Features

Feature	Description
ECS Architecture	Data-driven Entity-Component-System pattern for flexible and cache-friendly game logic
High-Performance Rendering	Rust/WebAssembly 2D renderer with automatic sprite batching and WebGL 2.0 backend
Visual Editor	Cross-platform desktop editor built with Tauri for scene management and asset workflows
Modular Design	Import only what you need - each feature is a standalone package
Multi-Platform Export	Deploy to Web, WeChat Mini Games, and more from one codebase
Physics Integration	2D physics powered by Rapier with editor visualization
Visual Scripting	Behavior trees and blueprint system for designers

Tech Stack

• Runtime: TypeScript, Rust, WebAssembly
• Renderer: WebGL 2.0, WGPU (planned)
• Editor: Tauri, React, Zustand
• Physics: Rapier2D
• Build: pnpm, Turborepo, Rollup

License

ESEngine is free and open source under the MIT License. No royalties, no strings attached.

Installation

npm

npm install @esengine/ecs-framework

Editor

Download pre-built binaries from the Releases page (Windows, macOS).

Quick Start

import {
    Core, Scene, Entity, Component, EntitySystem,
    Matcher, Time, ECSComponent, ECSSystem
} from '@esengine/ecs-framework';

@ECSComponent('Position')
class Position extends Component {
    x = 0;
    y = 0;
}

@ECSComponent('Velocity')
class Velocity extends Component {
    dx = 0;
    dy = 0;
}

@ECSSystem('Movement')
class MovementSystem extends EntitySystem {
    constructor() {
        super(Matcher.all(Position, Velocity));
    }

    protected process(entities: readonly Entity[]): void {
        for (const entity of entities) {
            const pos = entity.getComponent(Position);
            const vel = entity.getComponent(Velocity);
            pos.x += vel.dx * Time.deltaTime;
            pos.y += vel.dy * Time.deltaTime;
        }
    }
}

// Initialize
Core.create();
const scene = new Scene();
scene.addSystem(new MovementSystem());

const player = scene.createEntity('Player');
player.addComponent(new Position());
player.addComponent(new Velocity());

Core.setScene(scene);

// Game loop
function gameLoop(currentTime: number) {
    Core.update(currentTime / 1000);
    requestAnimationFrame(gameLoop);
}
requestAnimationFrame(gameLoop);

Packages

ESEngine is organized as a monorepo with modular packages.

Core

Package	Description
@esengine/ecs-framework	Core ECS framework with entity management, component system, and queries
@esengine/math	Vector, matrix, and mathematical utilities
@esengine/engine	Rust/WASM 2D renderer
@esengine/engine-core	Engine module system and lifecycle management

Runtime

Package	Description
@esengine/sprite	2D sprite rendering and animation
@esengine/tilemap	Tile-based map rendering
@esengine/physics-rapier2d	2D physics simulation (Rapier)
@esengine/behavior-tree	Behavior tree AI system
@esengine/blueprint	Visual scripting runtime
@esengine/camera	Camera control and management
@esengine/audio	Audio playback
@esengine/ui	UI components
@esengine/material-system	Material and shader system
@esengine/asset-system	Asset loading and management

Editor Extensions

Package	Description
@esengine/sprite-editor	Sprite inspector and tools
@esengine/tilemap-editor	Visual tilemap editor
@esengine/physics-rapier2d-editor	Physics collider visualization
@esengine/behavior-tree-editor	Visual behavior tree editor
@esengine/blueprint-editor	Visual scripting editor
@esengine/material-editor	Material editor

Platform

Package	Description
@esengine/platform-common	Platform abstraction interfaces
@esengine/platform-web	Web browser runtime
@esengine/platform-wechat	WeChat Mini Game runtime

Editor

The ESEngine Editor is a cross-platform desktop application built with Tauri and React.

Features

• Scene hierarchy and entity management
• Component inspector with custom property editors
• Asset browser with drag-and-drop
• Tilemap editor with paint and fill tools
• Behavior tree visual editor
• Blueprint visual scripting
• Material and shader editing
• Built-in performance profiler
• Localization (English, Chinese)

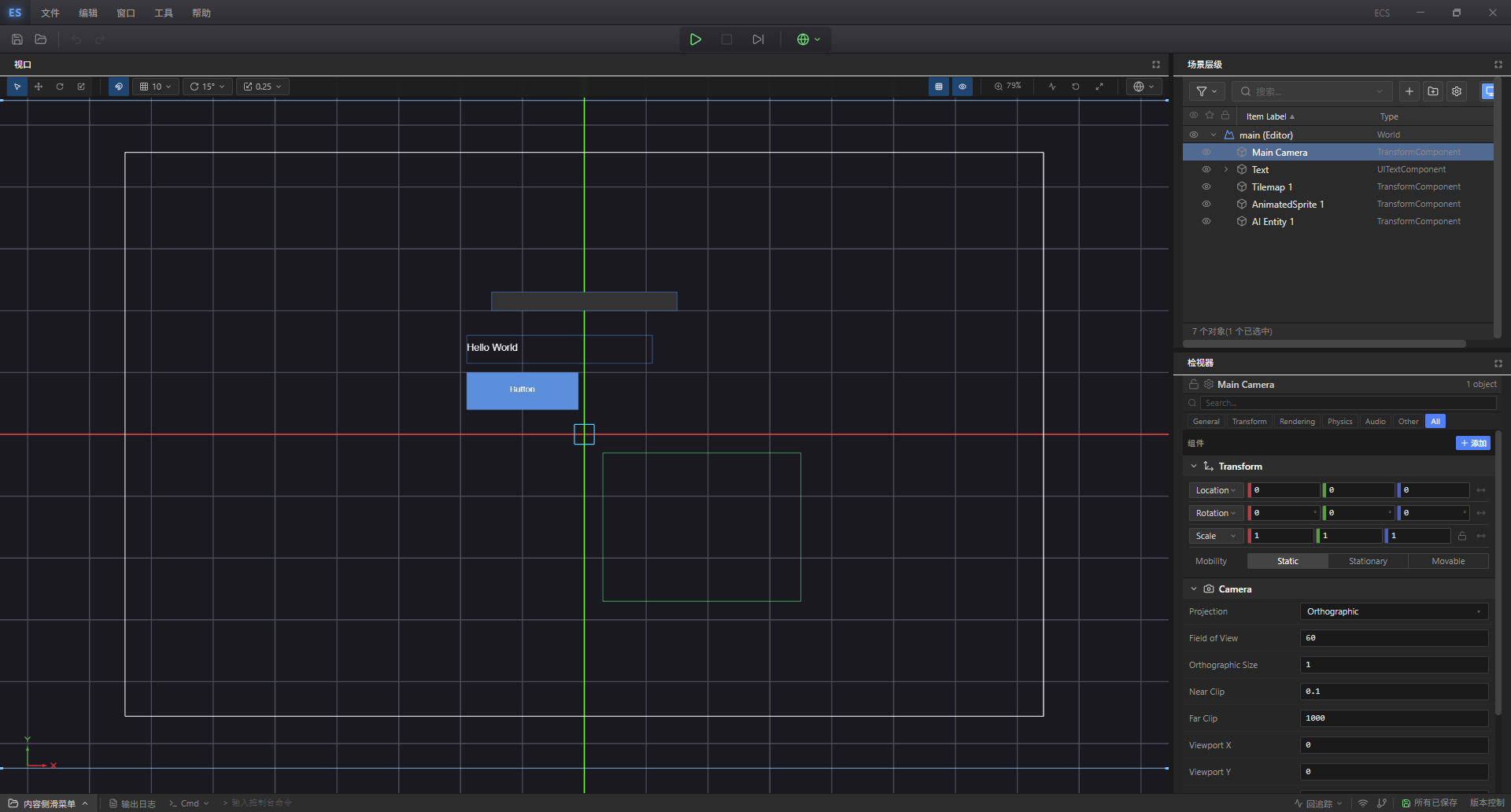

Screenshot

Platform Support

Platform	Runtime	Editor
Web Browser	✓	-
Windows	-	✓
macOS	-	✓
WeChat Mini Game	In Progress	-
Playable Ads	Planned	-
Android	Planned	-
iOS	Planned	-

Building from Source

Prerequisites

• Node.js 18+
• pnpm 10+
• Rust toolchain (for WASM renderer)
• wasm-pack

Setup

git clone https://github.com/esengine/esengine.git
cd esengine

pnpm install
pnpm build

# Optional: Build WASM renderer
pnpm build:wasm

Run Editor

cd packages/editor-app
pnpm tauri:dev

Project Structure

esengine/
├── packages/           # Engine packages (runtime, editor, platform)
├── docs/               # Documentation source
├── examples/           # Example projects
├── scripts/            # Build utilities
└── thirdparty/         # Third-party dependencies

Documentation

• Getting Started
• Architecture Guide
• API Reference

Community

• GitHub Issues - Bug reports and feature requests
• GitHub Discussions - Questions and ideas

Contributing

Contributions are welcome. Please read the contributing guidelines before submitting a pull request.

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

License

ESEngine is licensed under the MIT License.

---

Made with ❤️ by the ESEngine team
