ESEngine

English | 中文

Documentation | API Reference | Examples

ESEngine is a cross-platform 2D game engine for creating games from a unified interface. It provides a comprehensive set of common tools so that developers can focus on making games without having to reinvent the wheel.

Games can be exported to multiple platforms including Web browsers, WeChat Mini Games, and other mini-game platforms.

Free and Open Source

ESEngine is completely free and open source under the MIT license. No strings attached, no royalties. Your games are yours.

Features

• Data-Driven Architecture: Built on Entity-Component-System (ECS) pattern for flexible and performant game logic
• High-Performance Rendering: Rust/WebAssembly 2D renderer with sprite batching and WebGL 2.0 backend
• Visual Editor: Cross-platform desktop editor with scene management, asset browser, and visual tools
• Modular Design: Use only what you need. Each feature is a separate module that can be included independently
• Multi-Platform: Deploy to Web, WeChat Mini Games, and more from a single codebase

Getting the Engine

Using npm

npm install @esengine/ecs-framework

Building from Source

See Building from Source for detailed instructions.

Editor Download

Pre-built editor binaries are available on the Releases page for Windows and macOS.

Quick Start

import {
    Core, Scene, Entity, Component, EntitySystem,
    Matcher, Time, ECSComponent, ECSSystem
} from '@esengine/ecs-framework';

@ECSComponent('Position')
class Position extends Component {
    x = 0;
    y = 0;
}

@ECSComponent('Velocity')
class Velocity extends Component {
    dx = 0;
    dy = 0;
}

@ECSSystem('Movement')
class MovementSystem extends EntitySystem {
    constructor() {
        super(Matcher.all(Position, Velocity));
    }

    protected process(entities: readonly Entity[]): void {
        for (const entity of entities) {
            const pos = entity.getComponent(Position);
            const vel = entity.getComponent(Velocity);
            pos.x += vel.dx * Time.deltaTime;
            pos.y += vel.dy * Time.deltaTime;
        }
    }
}

Core.create();
const scene = new Scene();
scene.addSystem(new MovementSystem());

const player = scene.createEntity('Player');
player.addComponent(new Position());
player.addComponent(new Velocity());

Core.setScene(scene);

// Game loop
let lastTime = 0;
function gameLoop(currentTime: number) {
    const deltaTime = (currentTime - lastTime) / 1000;
    lastTime = currentTime;

    Core.update(deltaTime);
    requestAnimationFrame(gameLoop);
}
requestAnimationFrame(gameLoop);

Modules

ESEngine is organized into modular packages. Each feature has a runtime module and an optional editor extension.

Core

Package	Description
@esengine/ecs-framework	Core ECS framework with entity management, component system, and queries
@esengine/math	Vector, matrix, and mathematical utilities
@esengine/engine	Rust/WASM 2D renderer
@esengine/engine-core	Engine module system and lifecycle management

Runtime Modules

Package	Description
@esengine/sprite	2D sprite rendering and animation
@esengine/tilemap	Tile-based map rendering with animation support
@esengine/physics-rapier2d	2D physics simulation powered by Rapier
@esengine/behavior-tree	Behavior tree AI system
@esengine/blueprint	Visual scripting runtime
@esengine/camera	Camera control and management
@esengine/audio	Audio playback
@esengine/ui	UI components
@esengine/material-system	Material and shader system
@esengine/asset-system	Asset loading and management

Editor Extensions

Package	Description
@esengine/sprite-editor	Sprite inspector and tools
@esengine/tilemap-editor	Visual tilemap editor with brush tools
@esengine/physics-rapier2d-editor	Physics collider visualization and editing
@esengine/behavior-tree-editor	Visual behavior tree editor
@esengine/blueprint-editor	Visual scripting editor
@esengine/material-editor	Material and shader editor
@esengine/shader-editor	Shader code editor

Platform

Package	Description
@esengine/platform-common	Platform abstraction interfaces
@esengine/platform-web	Web browser runtime
@esengine/platform-wechat	WeChat Mini Game runtime

Editor

ESEngine Editor is a cross-platform desktop application built with Tauri and React.

Features

• Scene hierarchy and entity management
• Component inspector with custom editors
• Asset browser with drag-and-drop support
• Tilemap editor with paint, fill, and selection tools
• Behavior tree visual editor
• Blueprint visual scripting
• Material and shader editing
• Built-in performance profiler
• Localization support (English, Chinese)

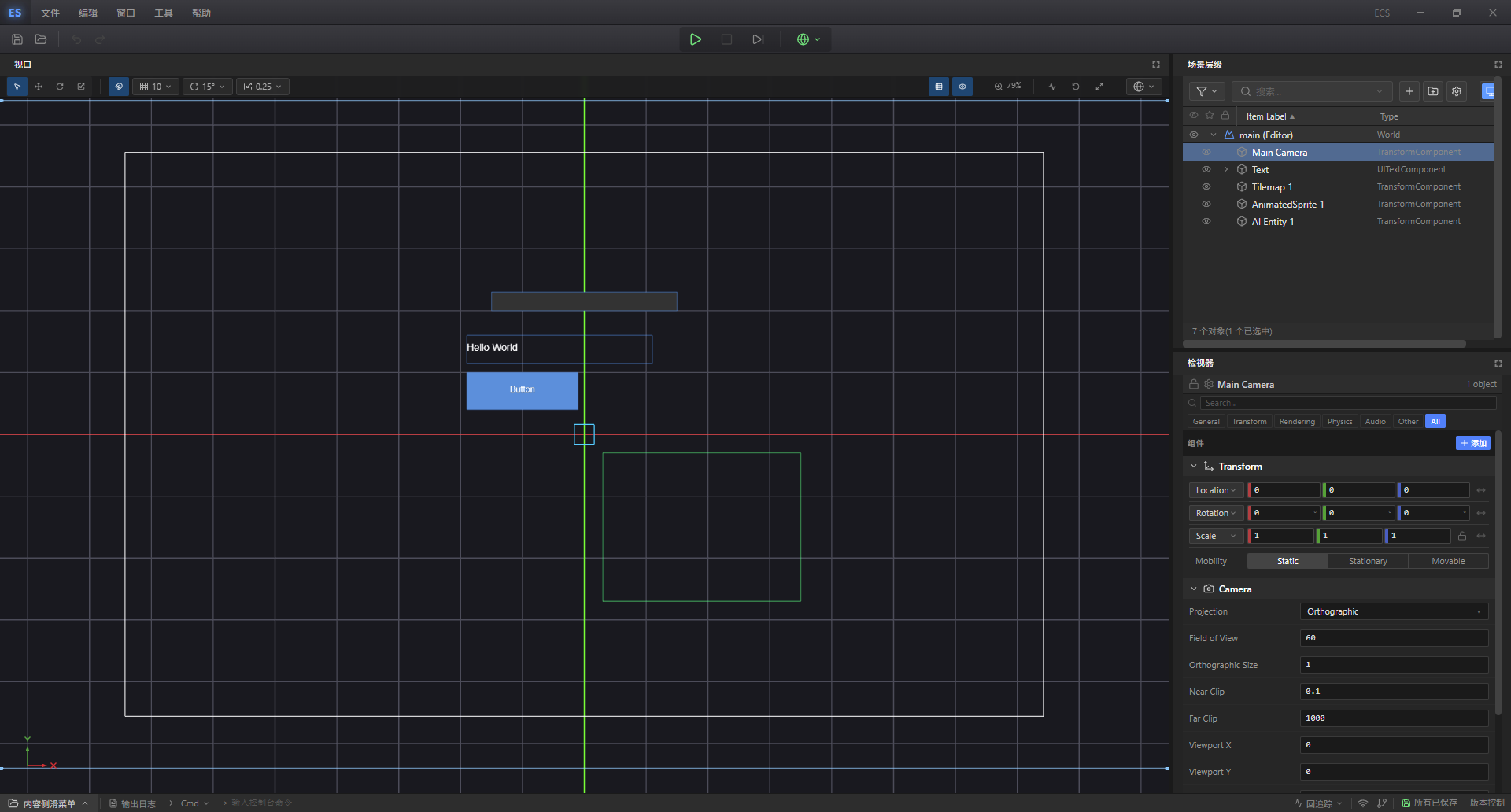

Screenshot

Supported Platforms

Platform	Runtime	Editor
Web Browser	Yes	-
Windows	-	Yes
macOS	-	Yes
WeChat Mini Game	In Progress	-
Playable Ads	Planned	-
Android	Planned	-
iOS	Planned	-
Windows Native	Planned	-
Other Platforms	Planned	-

Building from Source

Prerequisites

• Node.js 18 or later
• pnpm 10 or later
• Rust toolchain (for WASM renderer)
• wasm-pack

Setup

# Clone repository
git clone https://github.com/esengine/ecs-framework.git
cd ecs-framework

# Install dependencies
pnpm install

# Build all packages
pnpm build

# Build WASM renderer (optional)
pnpm build:wasm

Running the Editor

cd packages/editor-app
pnpm tauri:dev

Project Structure

ecs-framework/
├── packages/           Engine packages (runtime, editor, platform)
├── docs/               Documentation source
├── examples/           Example projects
├── scripts/            Build utilities
└── thirdparty/         Third-party dependencies

Documentation

• Getting Started
• Architecture Guide
• API Reference

Community

• GitHub Issues - Bug reports and feature requests
• GitHub Discussions - Questions and ideas

Contributing

Contributions are welcome. Please read the contributing guidelines before submitting a pull request.

1. Fork the repository
2. Create a feature branch
3. Make changes with tests
4. Submit a pull request

License

ESEngine is licensed under the MIT License.
