ESEngine
Cross-platform 2D Game Engine
English | 中文
Documentation ·
API Reference ·
Download Editor ·
Examples
---
> **Just need ECS?** The core ECS framework [`@esengine/ecs-framework`](./packages/core/) can be used standalone with Cocos Creator, Laya, or any JS engine. [View ECS Documentation](./packages/core/README.md)
## Overview
ESEngine is a cross-platform 2D game engine built from the ground up with modern web technologies. It provides a comprehensive toolset that enables developers to focus on creating games rather than building infrastructure.
Export your games to multiple platforms including web browsers, WeChat Mini Games, and other mini-game platforms from a single codebase.
## Key Features
| Feature | Description |
|---------|-------------|
| **ECS Architecture** | Data-driven Entity-Component-System pattern for flexible and cache-friendly game logic |
| **High-Performance Rendering** | Rust/WebAssembly 2D renderer with automatic sprite batching and WebGL 2.0 backend |
| **Visual Editor** | Cross-platform desktop editor built with Tauri for scene management and asset workflows |
| **Modular Design** | Import only what you need - each feature is a standalone package |
| **Multi-Platform Export** | Deploy to Web, WeChat Mini Games, and more from one codebase |
| **Physics Integration** | 2D physics powered by Rapier with editor visualization |
| **Visual Scripting** | Behavior trees and blueprint system for designers |
## Tech Stack
- **Runtime**: TypeScript, Rust, WebAssembly
- **Renderer**: WebGL 2.0, WGPU (planned)
- **Editor**: Tauri, React, Zustand
- **Physics**: Rapier2D
- **Build**: pnpm, Turborepo, Rollup
## License
ESEngine is **free and open source** under the [MIT License](LICENSE). No royalties, no strings attached.
## Installation
### npm
```bash
npm install @esengine/ecs-framework
```
### Editor
Download pre-built binaries from the [Releases](https://github.com/esengine/esengine/releases) page (Windows, macOS).
## Quick Start
```typescript
import {
Core, Scene, Entity, Component, EntitySystem,
Matcher, Time, ECSComponent, ECSSystem
} from '@esengine/ecs-framework';
@ECSComponent('Position')
class Position extends Component {
x = 0;
y = 0;
}
@ECSComponent('Velocity')
class Velocity extends Component {
dx = 0;
dy = 0;
}
@ECSSystem('Movement')
class MovementSystem extends EntitySystem {
constructor() {
super(Matcher.all(Position, Velocity));
}
protected process(entities: readonly Entity[]): void {
for (const entity of entities) {
const pos = entity.getComponent(Position);
const vel = entity.getComponent(Velocity);
pos.x += vel.dx * Time.deltaTime;
pos.y += vel.dy * Time.deltaTime;
}
}
}
// Initialize
Core.create();
const scene = new Scene();
scene.addSystem(new MovementSystem());
const player = scene.createEntity('Player');
player.addComponent(new Position());
player.addComponent(new Velocity());
Core.setScene(scene);
// Game loop
function gameLoop(currentTime: number) {
Core.update(currentTime / 1000);
requestAnimationFrame(gameLoop);
}
requestAnimationFrame(gameLoop);
```
## Packages
ESEngine is organized as a monorepo with 50+ modular packages. Install only what you need.
### Essential
```bash
npm install @esengine/ecs-framework # Core ECS (can be used standalone)
npm install @esengine/engine-core # Full engine with module system
```
### Popular Modules
| Category | Packages |
|----------|----------|
| **Rendering** | `sprite`, `tilemap`, `particle`, `mesh-3d`, `fairygui` |
| **Physics** | `physics-rapier2d` |
| **AI & Logic** | `behavior-tree`, `blueprint` |
| **Network** | `network`, `network-server` |
| **Platform** | `platform-web`, `platform-wechat` |
View all 50+ packages
#### Core
- `@esengine/ecs-framework` - ECS framework core
- `@esengine/math` - Vector, matrix utilities
- `@esengine/engine` - Rust/WASM renderer
- `@esengine/engine-core` - Module lifecycle
#### Runtime
- `@esengine/sprite` - 2D sprites & animation
- `@esengine/tilemap` - Tile-based maps
- `@esengine/particle` - Particle effects
- `@esengine/physics-rapier2d` - 2D physics
- `@esengine/behavior-tree` - AI behavior trees
- `@esengine/blueprint` - Visual scripting
- `@esengine/camera` - Camera system
- `@esengine/audio` - Audio playback
- `@esengine/fairygui` - FairyGUI integration
- `@esengine/mesh-3d` - 3D mesh (FBX/GLTF/OBJ)
- `@esengine/material-system` - Materials & shaders
- `@esengine/asset-system` - Asset management
- `@esengine/world-streaming` - Large world streaming
#### Network
- `@esengine/network` - Client (TSRPC)
- `@esengine/network-server` - Server runtime
- `@esengine/network-protocols` - Shared protocols
#### Editor Extensions
All runtime modules have corresponding `-editor` packages for visual editing.
#### Platform
- `@esengine/platform-common` - Platform abstraction
- `@esengine/platform-web` - Web runtime
- `@esengine/platform-wechat` - WeChat Mini Game
## Editor
The ESEngine Editor is a cross-platform desktop application built with Tauri and React.
### Features
- Scene hierarchy and entity management
- Component inspector with custom property editors
- Asset browser with drag-and-drop
- Tilemap editor with paint and fill tools
- Behavior tree visual editor
- Blueprint visual scripting
- Material and shader editing
- Built-in performance profiler
- Localization (English, Chinese)

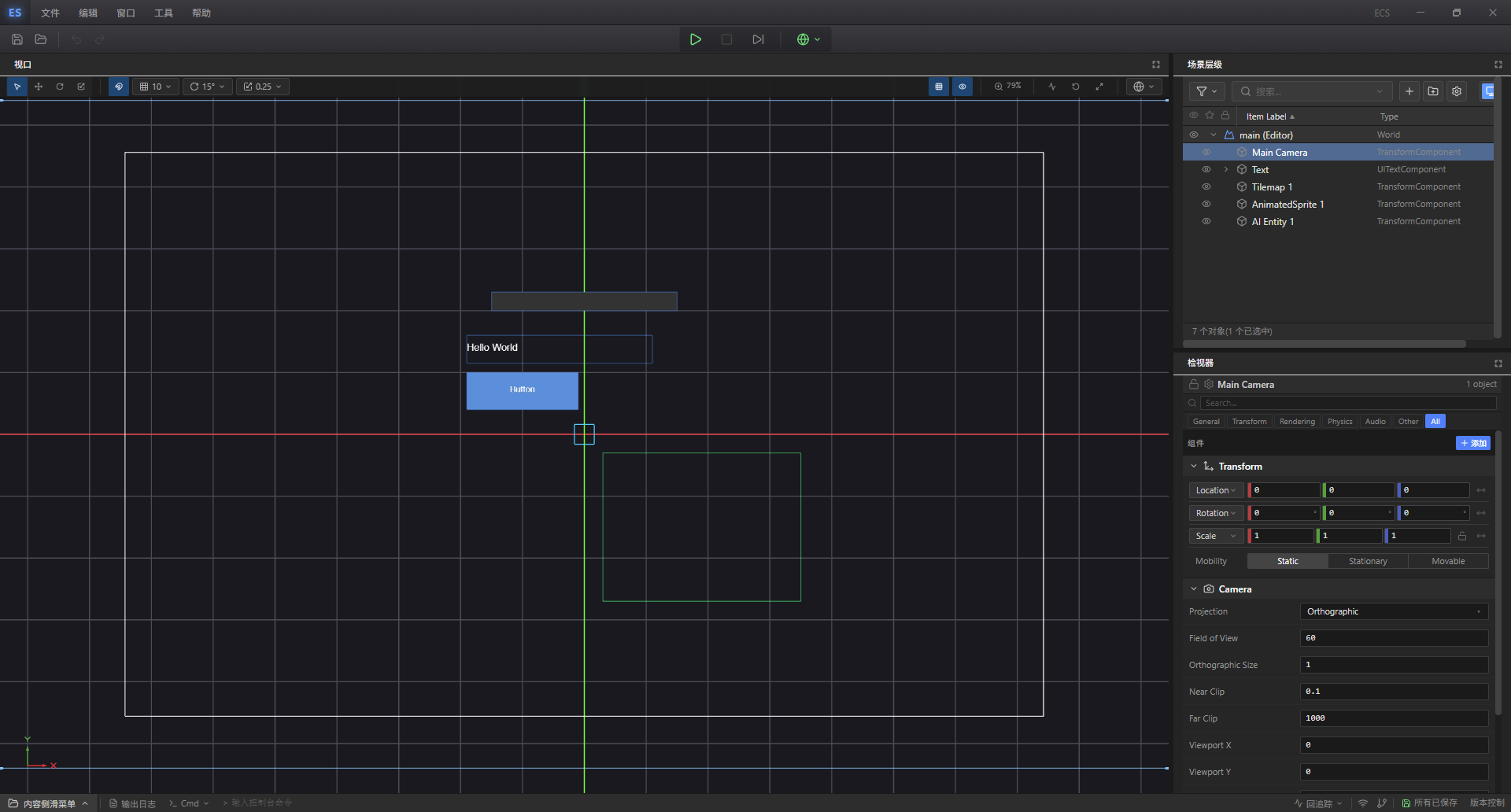

### Screenshot
## Platform Support
| Platform | Runtime | Editor |
|----------|:-------:|:------:|
| Web Browser | ✓ | - |
| Windows | - | ✓ |
| macOS | - | ✓ |
| WeChat Mini Game | In Progress | - |
| Playable Ads | Planned | - |
| Android | Planned | - |
| iOS | Planned | - |
## Building from Source
### Prerequisites
- Node.js 18+
- pnpm 10+
- Rust toolchain (for WASM renderer)
- wasm-pack
### Setup
```bash
git clone https://github.com/esengine/esengine.git
cd esengine
pnpm install
pnpm build
# Optional: Build WASM renderer
pnpm build:wasm
```
### Run Editor
```bash
cd packages/editor-app
pnpm tauri:dev
```
### Project Structure
```
esengine/
├── packages/
│ ├── core/ # ECS Framework (@esengine/ecs-framework)
│ ├── math/ # Math library (@esengine/math)
│ ├── engine-core/ # Engine lifecycle management
│ ├── sprite/ # 2D sprite rendering
│ ├── tilemap/ # Tilemap system
│ ├── physics-rapier2d/ # Physics engine
│ ├── behavior-tree/ # AI behavior trees
│ ├── editor-app/ # Desktop editor (Tauri)
│ └── ... # Other modules
├── docs/ # Documentation source
├── examples/ # Example projects
├── scripts/ # Build utilities
└── thirdparty/ # Third-party dependencies
```
> **Looking for ECS source code?** The ECS framework is in `packages/core/`
## Documentation
- [Getting Started](https://esengine.cn/guide/getting-started.html)
- [Architecture Guide](https://esengine.cn/guide/)
- [API Reference](https://esengine.cn/api/README)
## Community
- [Discord](https://discord.gg/gCAgzXFW) - Chat with the community
- [GitHub Issues](https://github.com/esengine/esengine/issues) - Bug reports and feature requests
- [GitHub Discussions](https://github.com/esengine/esengine/discussions) - Questions and ideas
## Contributing
Contributions are welcome. Please read the contributing guidelines before submitting a pull request.
1. Fork the repository
2. Create a feature branch (`git checkout -b feature/amazing-feature`)
3. Commit your changes (`git commit -m 'Add amazing feature'`)
4. Push to the branch (`git push origin feature/amazing-feature`)
5. Open a Pull Request
## License
ESEngine is licensed under the [MIT License](LICENSE).
---
